Name: 132 - Standard Railing Base Flange
Brand: Tubeclamp AU
SKU: TC132A
Price: 18.36 AUD
Availability: InStock

Variations in appearance may occur due to different manufacturers and batches, but functionality remains consistent across all products.

Swipe for additional images

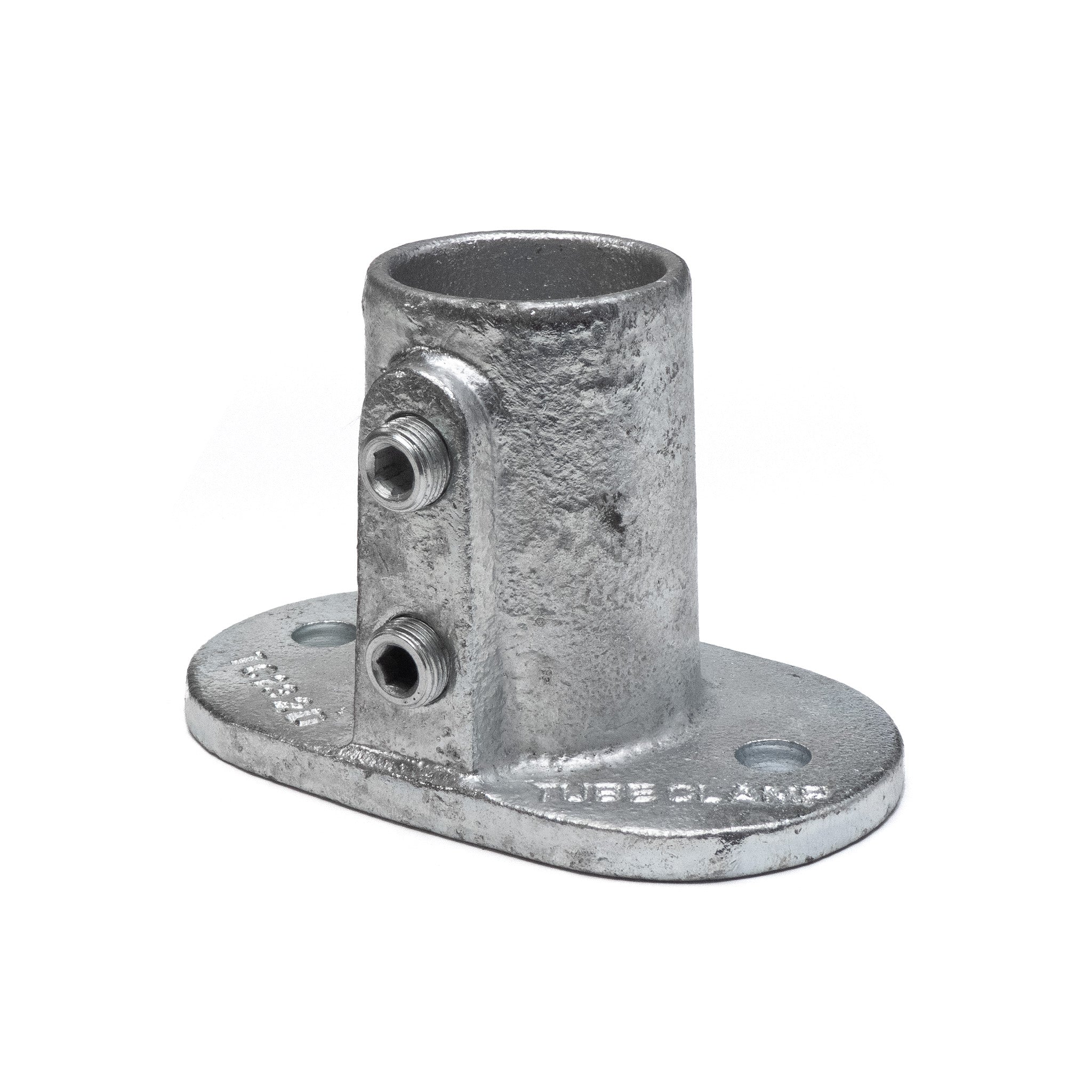

132 - Standard Railing Base Flange

18.36

Size

A27 - 27mm OD / 20(0.75")NB Pipe B34 - 34mm OD / 25(1.00")NB Pipe C42 - 42mm OD / 32(1.25")NB Pipe D48 - 48mm OD / 40(1.50")NB Pipe E60 - 60mm OD / 50(2.00")NB Pipe

PAYMENT METHODS ACCEPTED

Bulk Buying Discounts

Purchase in bulk to earn a discounted price.*
*Discount will be applied automatically to your cart.

Minimum Qty	Discount
Buy 10+	5% Off
Buy 20+	10% Off
Buy 30+	15% Off
Buy 40+	18% Off
Buy 50+	22% Off

Details

The TC132 Standard Railing Base Flange is commonly used to secure many kinds of pipe structures. It is widely used as a railing base flange.

Designed for both indoor and outdoor projects, it features our easy slip-on and tighten connection system which only requires a hex key to secure.

- For installation we recommend the M12 x 075 Masonry Screw Bolt found here.

Common Usage

Frequently used in pipe structures, railings, racks and furniture.

- TC132 features an oval shape for sizes A (27mm, 20NB), B (34mm, 25NB) & E (60mm, 50NB)

- Stronger alternative to TC131 Wall Round Flange

Alternative to TC247 Base Flange Toeboard with kick plate mount adapter

Technical Information

Material:
Fittings cast of malleable cast iron - galvanized finish

Cast iron fittings or casting to comply with AS 1832 (ISO 5922)

Hot Dipped Galvanized finish to comply with AS 4680.

Set Screw:

Cup Point Case hardened setscrew in 45CR Alloy Steel (alternative* Stainless Steel 308)

Size C42, D48, E60 using 3/8” ISO 228 with 5/16” (8mm) hex key

Size A27, B34 using ¼” ISO 228 with ¼” (6.5mm) hex key

Size T21 using 1/8 BSF with 3/16” (5mm) hex key.

Feature:
No welding required. Structural fittings slip directly onto bar and are secured using an allen key to tightened provided setscrews.

Tensile Load:
Min 5,650 N axial load subjected to 40Nm tightened torque (FOS 2.0 min).

Testing:
Tested internally by Solid Dynamics Engineering Pty Ltd. Testing videos are available upon request.

Design:
Tubeclamp Structural Fittings, when properly installed per manufacturing recommendations, meet or exceed all applicable requirements as specified by Australian Standard.

Application:
Handrails, Trolley Bays, Temporary Structure, Shop Fittings, Furnitures and many more.

Size Guide

Fitting Size

Tube Size

Tubeclamp Code

Outside Diameter

Imperial

Metric

T21	21.3mm / 0.84"	1/2	15NB
A27	26.9mm / 1.05"	3/4	20NB
B34	33.7mm / 1.33"	1	25NB
C42	42.4mm / 1.66"	1 1/4	32NB
D48	48.3mm / 1.9"	1 1/2	40NB
E60	60.3mm / 2.375"	2	50NB

*Figures given as guidance only, dimensions and weights are subject to manufacturing tolerances and may be altered without prior notice.

Installation Guide

Basic Install Guide for Tubeclamp Fittings
